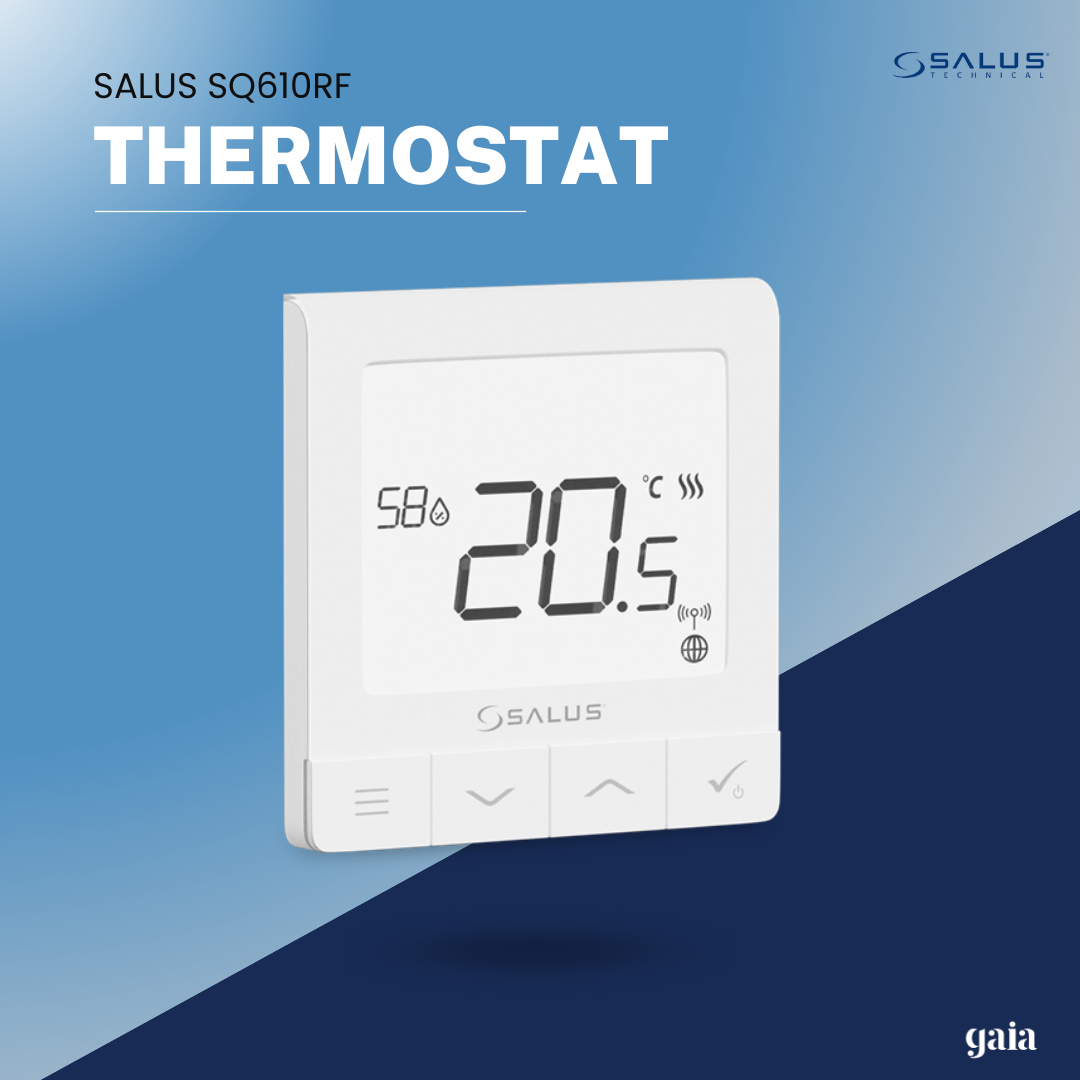

SQ610RF Wired Slimline Internet Controlled Thermostat
SQ610RF Wired Slimline Internet Controlled Thermostat
- Free Delivery
Couldn't load pickup availability
Product Description
The SQ610RF Wired Slimline Internet Controlled Thermostat has a streamlined appearance and is the thinnest on the market, measuring only 10mm. It includes an innovative algorithm for load compensation. The interface is easy to use and allows for intuitive temperature management. It uses superior temperature control technologies and sophisticated ZigBee radio frequency communication.
Note:
One SQ610RF thermostat is required per room. This thermostat can switch and control multiple panels in a room.
Key Features
Ultra-slim design:
- It is the thinnest wired thermostat on the market, measuring only 10mm and featuring a clean and modern design.
Smart Control Tempreature:
- Provides accurate temperature control and increased energy efficiency for your heating system.
User-friendly Interface:
- Temperatures and settings are easily managed and customized thanks to intuitive controls.
Zigbee Communication Technology:
- Uses sophisticated ZigBee wireless frequency to provide dependable and secure connectivity with other smart devices.
Room-Specific Controls:
- Each room requires a single SQ610 thermostat, which may control numerous heating panels.
TECHNICAL SPECIFICATIONS | |
Product type | Thermostat |
Mounting type | Flush mounting |
Power supply type | 230V |
Suitable for radiator heating | Yes |
Suitable for electric heating | Yes |
Controlled via internet | Yes |
Alexa / Google Home Assistant compatibility | Yes |
Output voltage | Volt free |
Frost Protection | Yes |
Frequency | 2.4 GHz |
Manual override | Yes |
Compatible with floor sensor | Yes |
Temperature control algorithm | ITLC |
Warranty | 5 years |
ErP (efficiency class) | IV |
Cooling mode function | Yes |
Valve protection | Yes |
Adjustable hysteresis | Yes |
Free SMS & email notification | Yes |
Zigbee Technology | Yes |
Size (mm) | 86x86x28/9 |
Temperature range | 5°C-35°C |
Optimisation functions | Yes |
LCD | Yes |
Blocare cu PIN | Yes |
Temperature blocking option | Yes |
Display temperature resolution | 0.5/0.1 |
Voltage | 230V |
Maximum amperage | 3A |
Communication range (m) | 30 |
Predefined programs | Yes |
Customizable programs | Yes |
Input voltage | 230V |
Extends the range of communication | Yes |
Quick installation / connection | L/N/COM/NO |
Meniu service | Yes |
Daily / Monday - Sunday programming | Yes |
Temporary overwriting | Yes |
Holiday option | Yes |
Memory back-up | Yes |
Stand-alone functioning | Yes |
Night mode | Yes |
Party mode | Yes |
RF Test function | Yes |
Record consumption history | Yes |
Coverage signal expansion | Yes |
Emergency notification | Yes |
Controls up to 6 TVS | Yes |
Terminals | L/N/COM/NO/S1/S2 |
